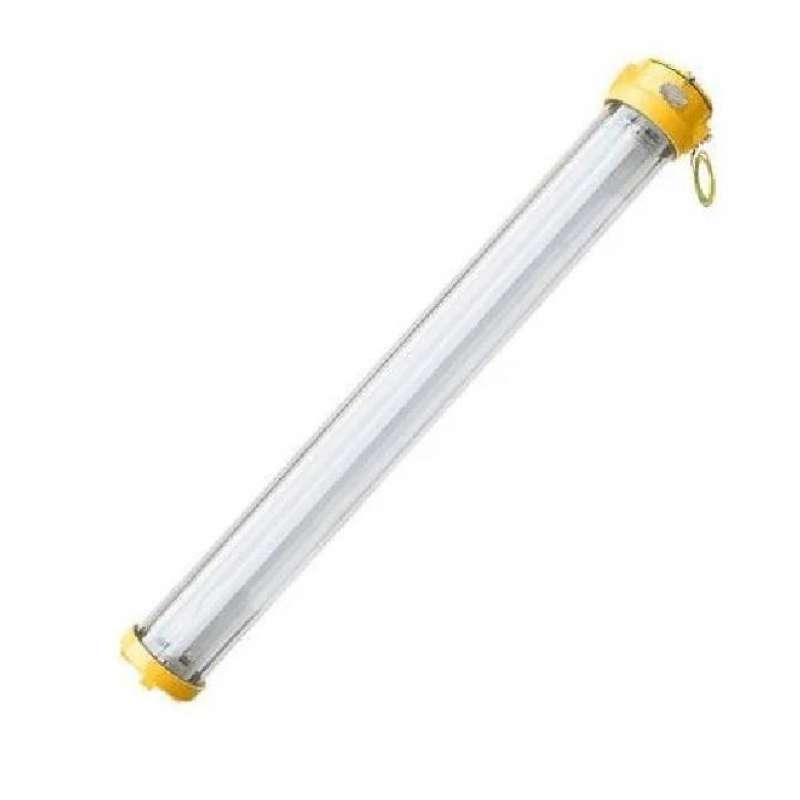

Explosion Proof LED Light Fixture AC 90-260V is ATEX Certified use in Zones 1, 2, 21 & 22(2X18W LED)

Technical Detail:

The ATEX Explosion Proof LED Light Fixture is ATEX Directive Certified for the safe use in Zones 1 and 2 potentially explosive gas atmospheres and Zones 21 & 22 potentially explosive dust atmospheres.

It is designed to provide a fixed light source in hazardous areas: compact and robust design, low power consumption. Fixing and installed accessories provided. This light contains high-quality, high-power LED, providing high-efficiency light output, high reliability, low maintenance light source. The light is suitable for wide input voltage: AC 90-260V, 50/60Hz maximize light usability.

Ex Mark: II 2G Ex de op is IIC T5 Gb

               II 2D Ex tb IIIC T135°C Db IP67

-       Type of Protection: “d” Flameproof, ‘tb’ Dust Ignition Protection by Enclosure

-       Areas of Classification (Gases): Zone 1 and 2, Gas Groups: IIA, IIB, and IIC

-       Areas of Classification (Dusts): Zone 21 and 22, Dust Groups: IIIA, IIIB, and IIIC

-       Temperature Classification (Gases / Dusts): T5 / 135°C

-       Diffuser: High impact resistant polycarbonate

-       Body: Aluminum die casting

-       Finish Body: Yellow epoxy powder coated

-       Light Source: LED Tube, 2x18W (4 feet)

-       Color Temperature: 4,000K

-       Lifetime: 50,000 hours

-       Voltage: AC 90-260V, 50/60Hz

-       Lamp Base: G13

-       Cable Glands: NPT 1/2” x 2 + one stopper plug, Brass nickel-plated

-       Ingress Protection: IP67
